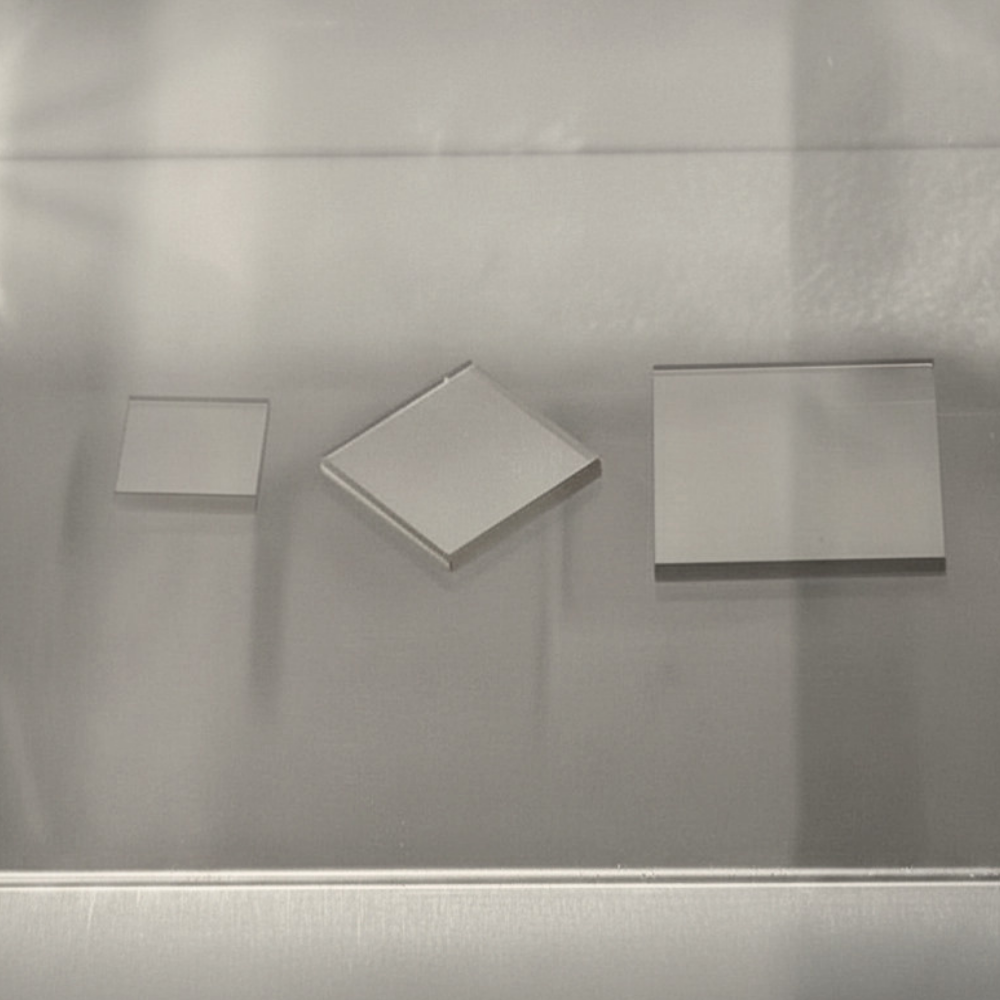

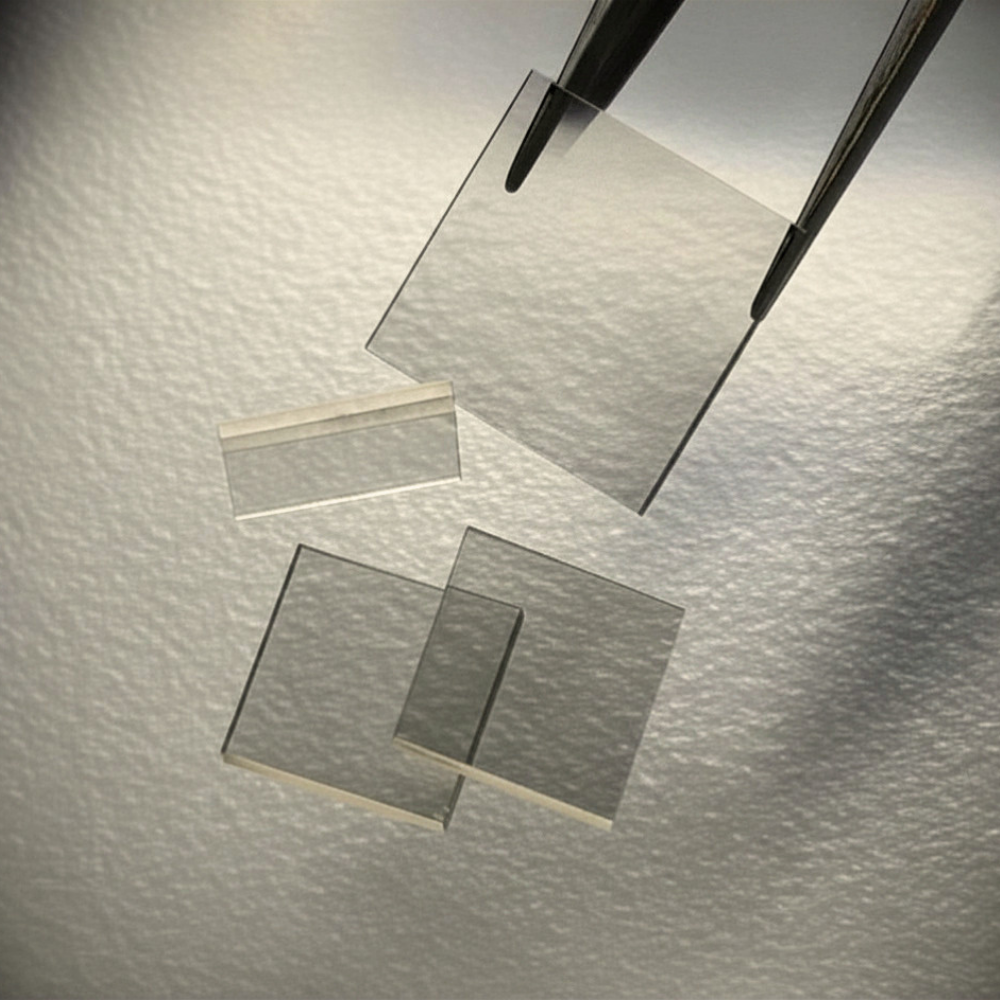

M10 Single Crystal Diamond Substrate
M10 single-crystal diamond substrates engineered for superior thermal conductivity and heat spreading. Available in multiple sizes and finishes.
Overview
The M10 Single Crystal Diamond Substrate is engineered for advanced thermal management applications where maximum heat dissipation and thermal conductivity are critical. Manufactured from premium single crystal diamond, the M10 provides exceptional thermal performance, dimensional stability, and reliability for semiconductor, RF, photonics, aerospace, and high-power electronics applications.
Available in multiple surface finishes and metallization options to support a wide range of packaging and integration requirements.
Features
- Single crystal diamond substrate
- Ultra-high thermal conductivity
- Available in Polish Lapped (PL) and Polish Polish (PP) finishes
- Optional metallization available
- Precision-machined dimensions
- Suitable for semiconductor, RF, photonics, and high-performance thermal applications
- Custom sizes available upon request
Definitions
| Code | Description |
|---|---|
| P | Polished |
| PL | Polish Lapped |
| PP | Polish Polish |
| MC | Metallized (Connected) - Metallization on both sides with electrical continuity through the substrate, allowing front-to-back electrical conductivity. |
| MO | Metallization (Open) - Metallization applied without front-to-back electrical continuity, creating an open electrical connection between surfaces. |
Need a Custom Configuration?
Looking for a custom size, thickness, surface finish, or metallization option? Northern Carbon can provide custom diamond substrate solutions tailored to your application requirements.
