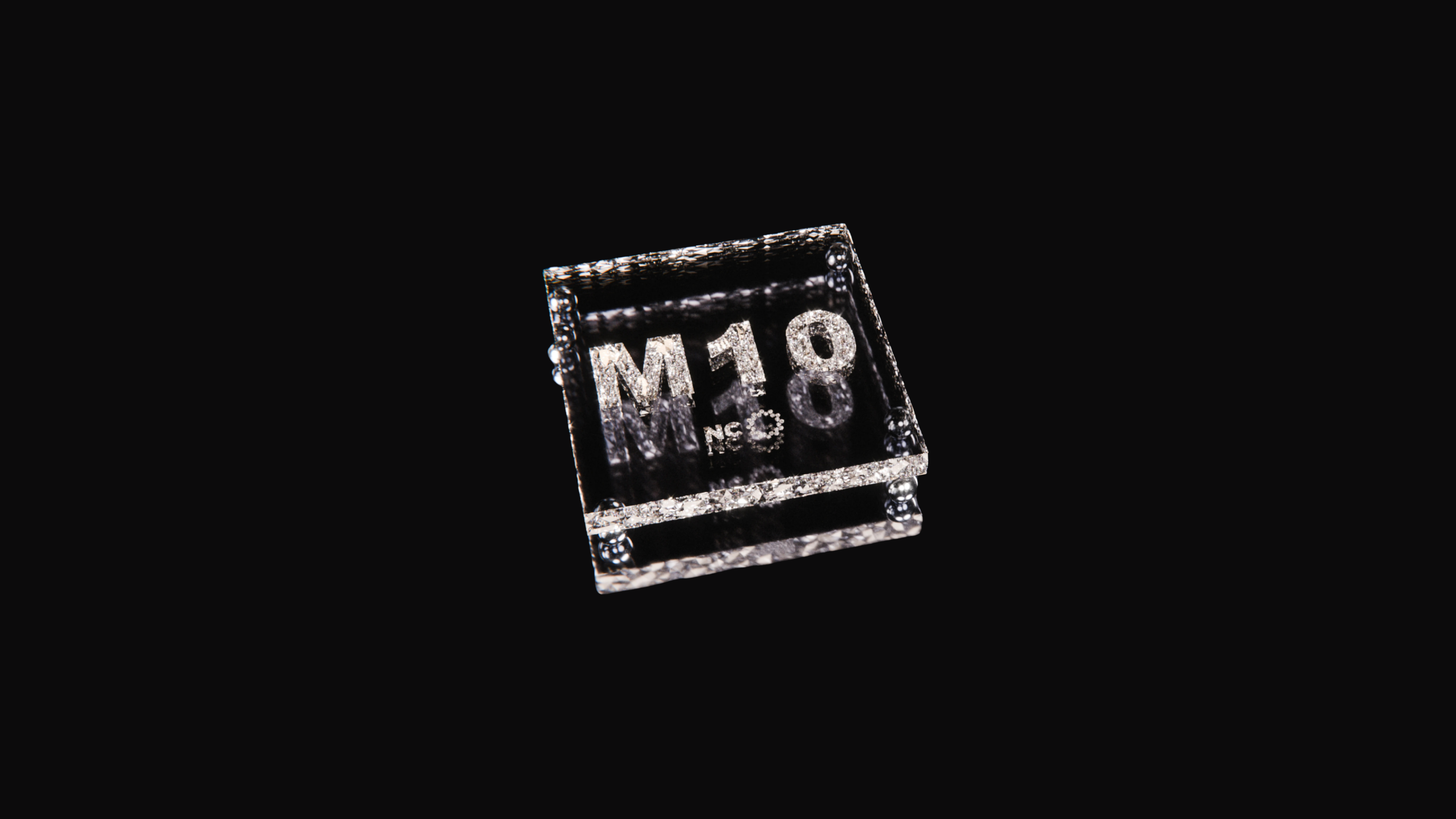

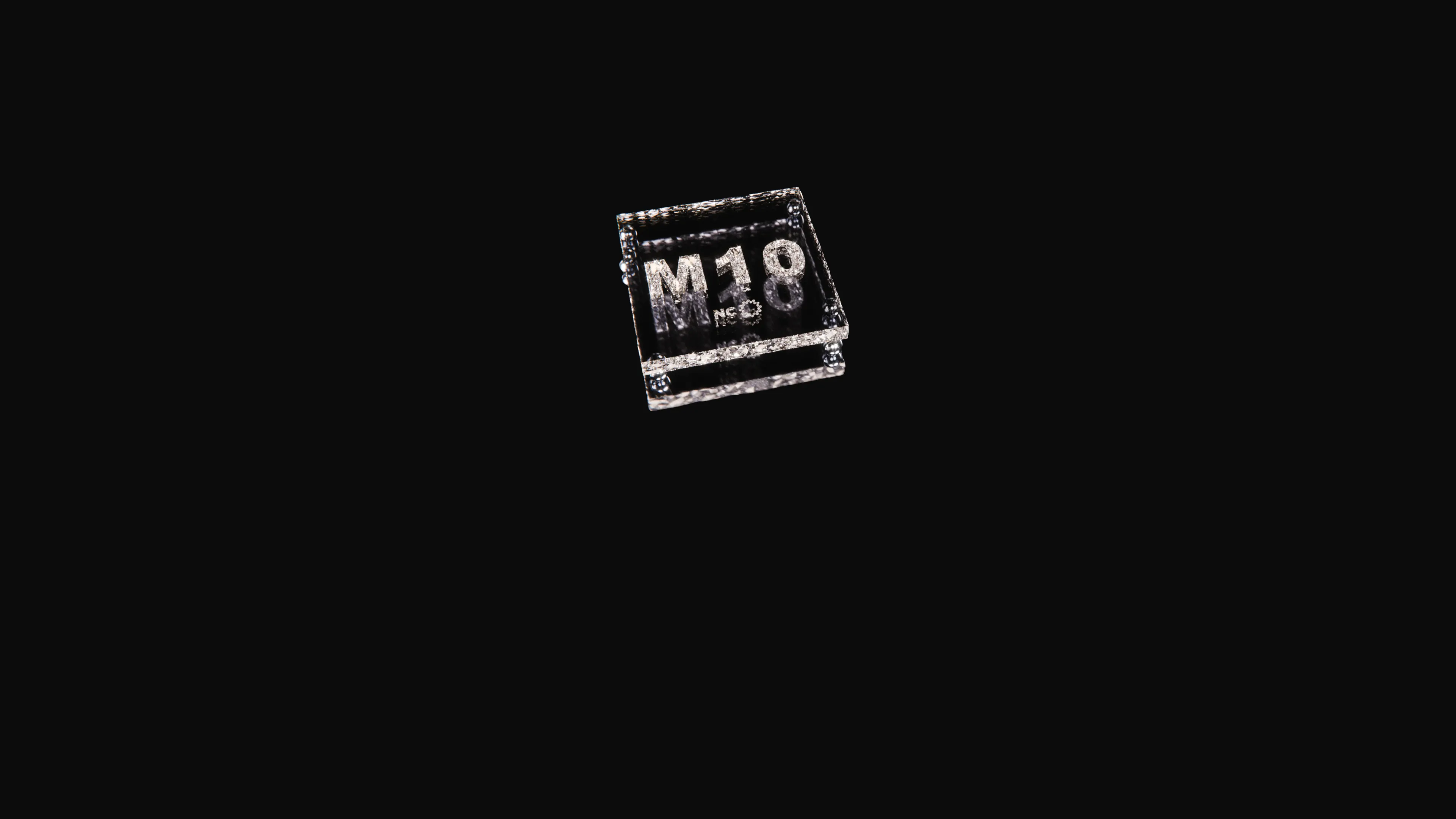

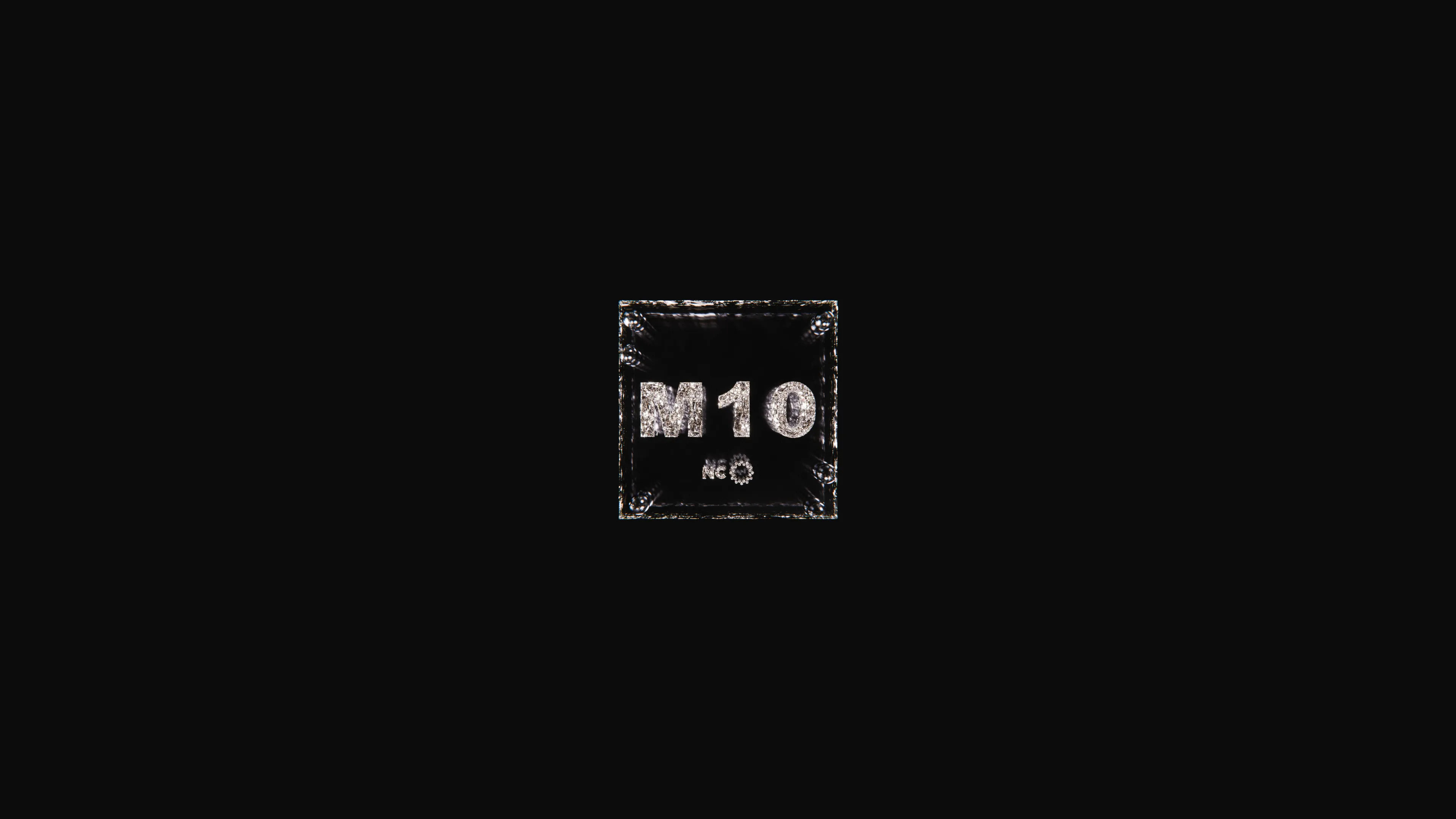

M10: Diamond Precision for Extreme Heat Management

M10 is Northern Carbon’s precision-engineered single-crystal diamond heat spreader for high-performance chips and lasers. Designed to move concentrated heat away from critical regions, M10 helps devices run cooler, more reliably, and at higher sustained performance.

Contact us today
Request Technical Consultation
Performance Benefits

Impact & Performance

M10 is engineered to manage the most demanding thermal loads, keeping chips cool and reliable even under sustained, high-power operation.

01Targeting Chip Hotspots

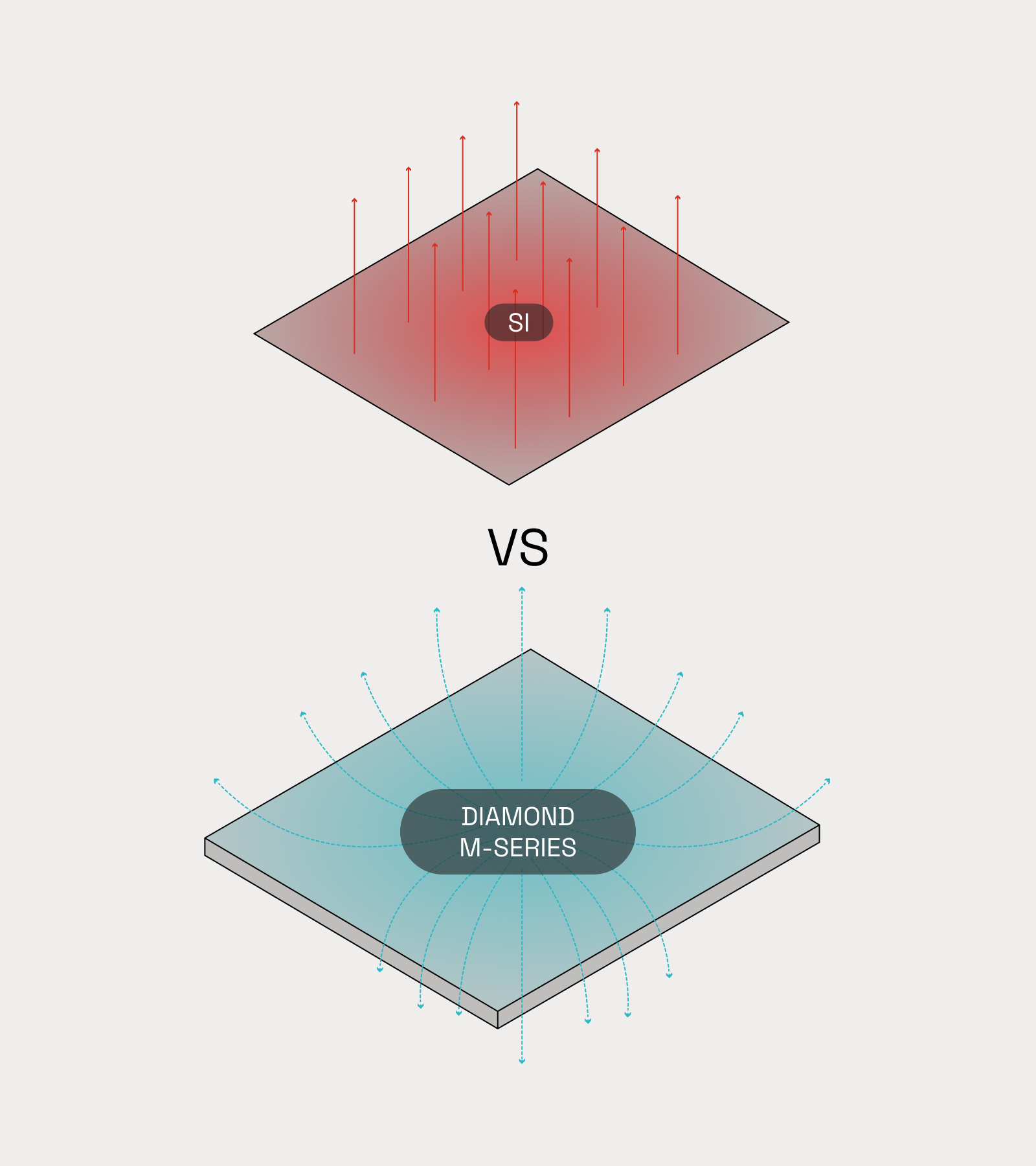

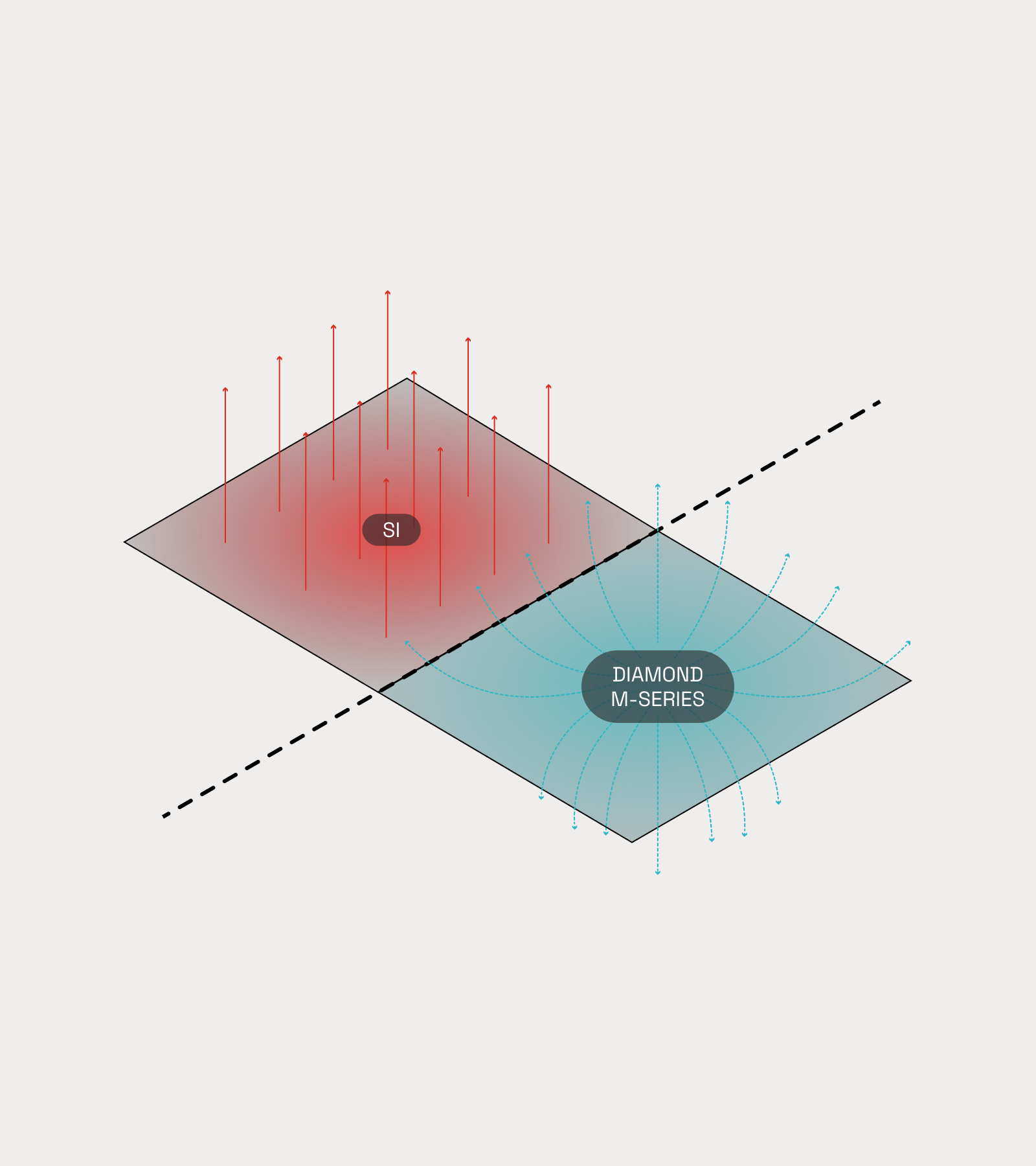

Chips could release up to 65% of power as heat. M10 spreads concentrated heat 5× faster than copper to prevent hotspots.

02Extend Device Lifespan

Reducing junction temperature by 10°C can double chip reliability and throughput.

03Precision Engineering

Cut to micron tolerances and polished to nanometer or sub-nanometer precision for maximum thermal contact with chip and heat sink.

Product Specifications

Technical Overview

M10 combines high thermal conductivity, tight dimensional control, and precision surface finishing to support reliable integration into advanced electronic packages. It is built for applications where hotspot reduction and thermal consistency directly affect performance and device life.

Property
M10
Details
Thermal Conductivity κXY / κZ
~1000–1200 W/m·K
Exceptional in-plane and through-plane performance
Crystal Type
Single-crystal diamond
Orientation <100>, no non-diamond carbon
Surface Roughness (Ra & Sa)
Polished ~ 0.5-3nm
Lapped ~ 150-250nm
Varies by plate size
Geometric Tolerances
±30µm L/W, ±20µm thickness
Parallelism within 0.5°
Chipouts
<100µm
Ensures consistent contact
Metallization
Optional Ti/Pt/Au
For chip/heat sink integration
Applications
CPUs, GPUs, laser diodes, power amplifiers
High-performance electronics
How It Works

Manufacturing & Integration

Each M10 plate is precision-engineered, metallized, and rigorously inspected to guarantee seamless integration into high-performance electronic systems.

Atomic-Level Precision

M10 plates are grown via advanced microwave-plasma CVD, laser-cut, and chemo-mechanically polished to nanometer- and sub-nanometer-level tolerances, ensuring maximum thermal contact for the most heat-sensitive chips.

Custom Metallization

Optional Ti/Pt/Au layers are available for M10, with thicknesses tailored to support specialized thermal, electrical, or RF conduction requirements.

Solder & Bonding Flexibility

M10 supports standard Au/Sn preforms for reliable thermal and electrical contact, with flexibility for applications requiring higher current-carrying capability

Rigorous QA & Metrology

Each M10 plate undergoes comprehensive automated metrology, verifying flatness, thermal consistency, and absence of inclusions. Third-party verification ensures maximum confidence in deployment.

Tailored Integration

M10 is engineered for direct integration into high-performance packages, including CPUs, GPUs, laser diodes, and power amplifiers, enabling immediate performance improvements with minimal adaptation.

Integrate M10 Into Your Systems

Unlock the full potential of your high-performance chips with M10’s advanced thermal management and atomic-level precision. Our diamonds are ready for seamless integration into CPUs, GPUs, laser diodes, and other thermally sensitive devices.
